BLOCKS
HYDRAFORM Hydraform HF220 block is the standard Hydraform block and is suitable for external 9″ thick walls.
HF220 is the standard Hydraform block has dimensions +- 230 mm (L) X 220mm (W) X 115 mm (H), has beveled / champhered edges. Block length can be made between 120 to 240mm and depends on material quantity.
BLOCK TECHNICAL DETAILS
- Raw material for making block :
- Soil-Sand-Cement
- Fly Ash-Sand-Cement
- Other locally available materials like rice husk ash ,Marble Powder etc. can be added.
- No burning – Only water cured.
- High Compressive Strength – Low water absorption.
- Interlocking Construction-Dry stack or minimal mortar.
- Vertical & Horizontal Reinforcement/Conduit possible.
HF 220
220 mm Block : (9-11kg)
- Width : 220 mm
- Height : 115 mm
- Length : 120 mm- 240 mm
HF 150
150 mm Block : (6-8 kg)
- Width : 150 mm
- Height : 115 mm
- Length : 120 mm- 240 mm
HF 220 Conduit
Conduit Block : (9-11 kg)
- Width : 220 mm
- Height : 115 mm
- Length : 120 mm- 240 mm

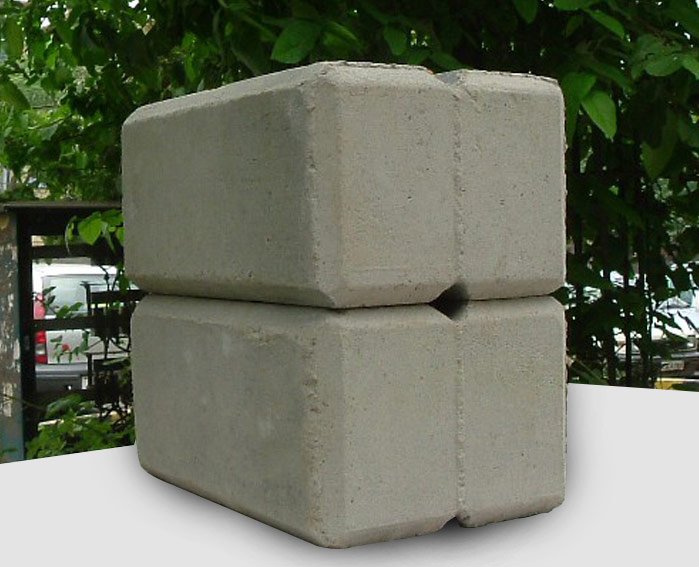

HF TWIN BRICK
Twin Bricks (6-7kg)
- Width : 115/150 mm
- Height : 150/115 mm
- Length : 120 mm- 240 mm
HFP 115/220
115/220 mm Plain Block : (9-11 kg)
- Width : 115 mm
- Height : 220 mm
- Length : 120 mm- 240 mm
HF 100 mm
100 mm Block : (3-4 kg)
- Width : 100 mm
- Height : 115 mm
- Length : 120 mm- 240 mm

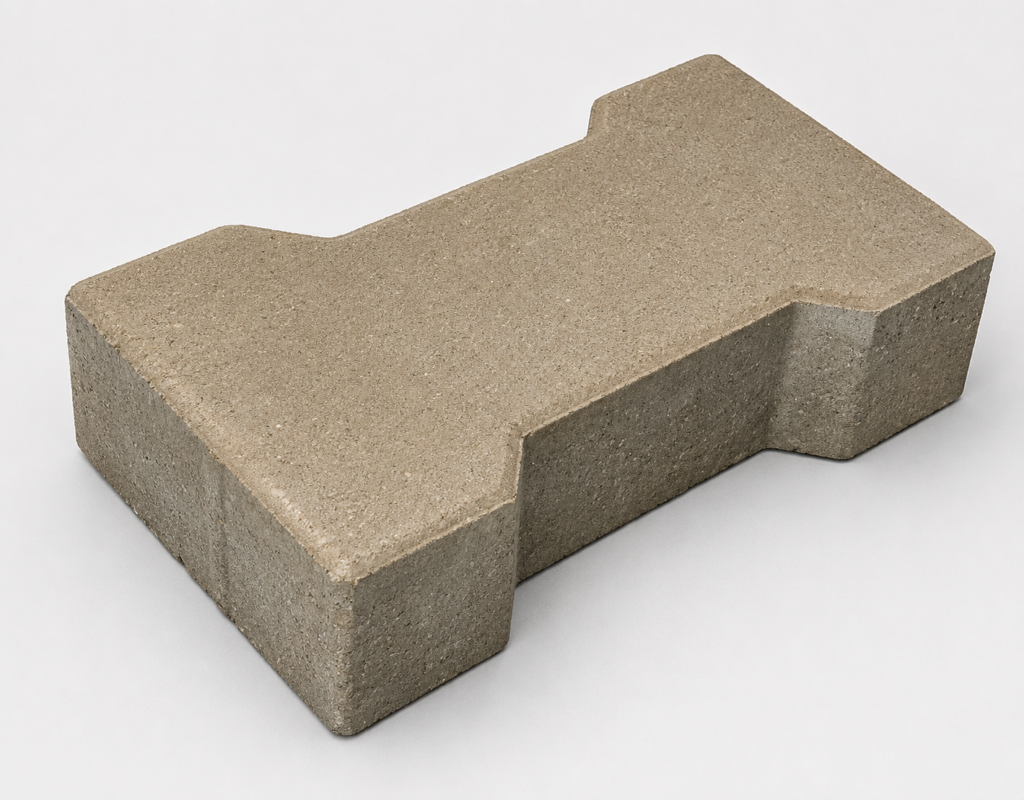

HF Paver
Paver : (5-6 kg)
- Width : 115 mm
- Height : 100 mm
- Length : 220 mm
HF 300 mm Length Block
300 mm Length Block : (16-17 kg)
- Width : 200/220 mm
- Height : 150 mm
- Length : 150/300 mm

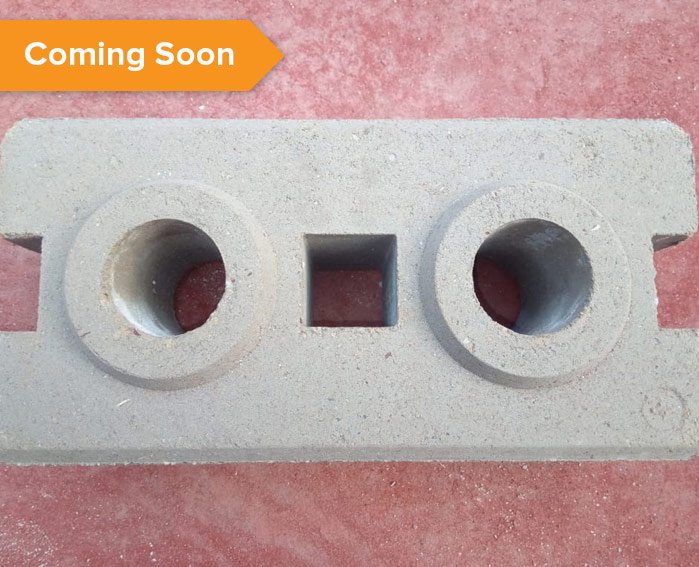

HF Hollow Interlocking Block
Weight: 6 to 7 Kg
- Width : 150 mm
- Height : 300 mm
- Length : 100 mm
